LABINCO L209650 Rolling Bench 650 mm long rolls with strong motor

  • Rolling Bench to keep samples in motion.
  • One roll is driven. Standard with 2 rolls, 1 fixed and 1 loose.
  • roll length 650 mm. Ø 46 mm. To order more rolls, Art.nr.65209
  • You can easily place maximal 5 rolls on the rolling bench
  • With timer and strong motor
  • Speed 1-240 rpm
  • Heart to heart distance from 7 mm up to 2150 mm
  • Dimensions basic unit (WxDxH) 880x 350 x 130 mm
  • Weight 11.5 kg
  • Art.nr.20965 (230V)

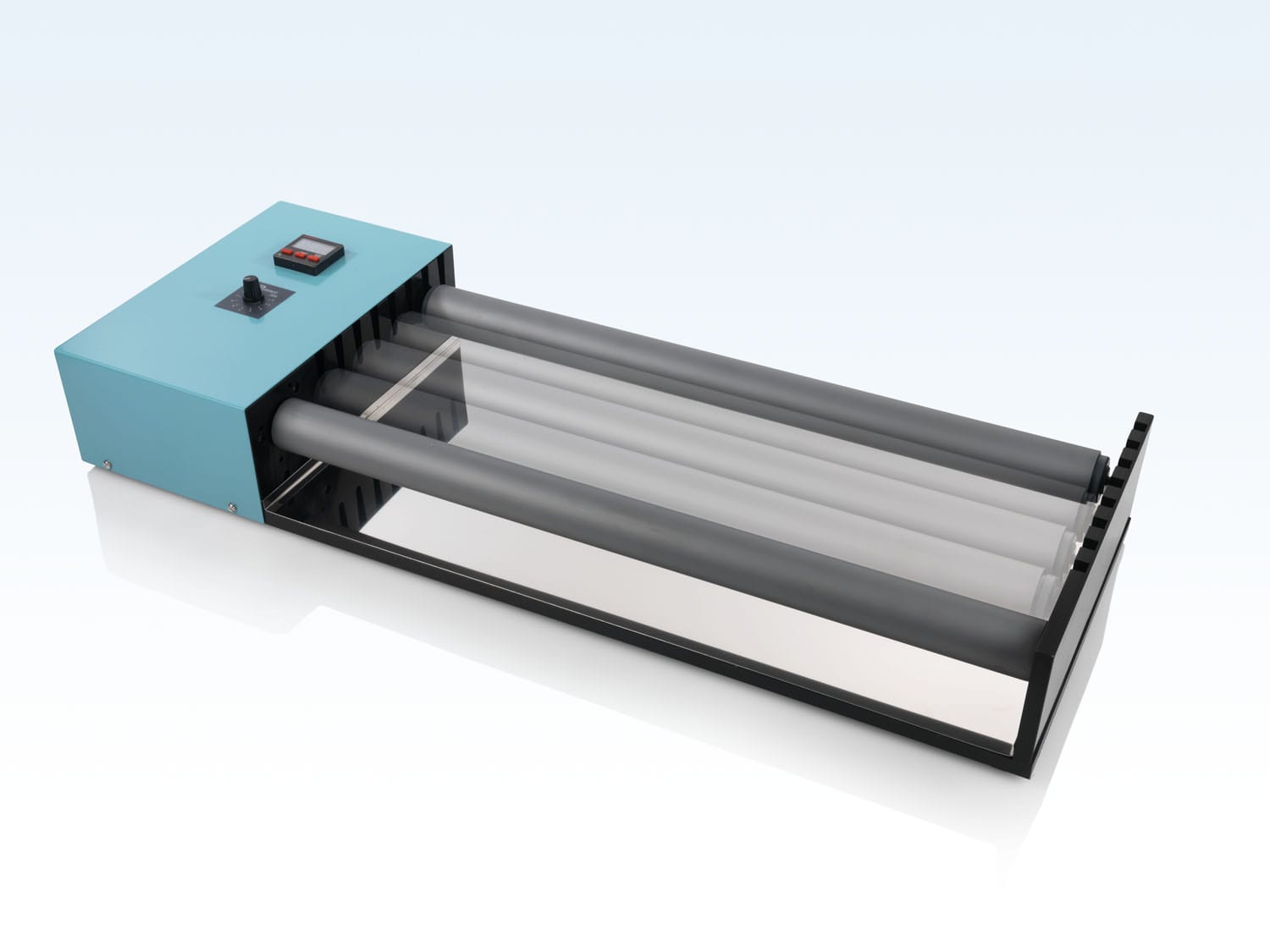

LABINCO L209650 Rolling Bench 650 mm long rolls with strong motor
LABINCO L209650 Rolling Bench 650 mm long rolls with strong motor - Image 2

Roller bench L209650

  • Analog unit with timer.
  • Supplied as standard with 2 rolls.
  • Expandable with 3 rolls to a max of 5
  • 1 fixed role and 1 that you can place in multiple positions

multi-functional; for multiple applications, from test tubes to large bottles

Number of positions1 up to 4
Max Quantity15 kg
Motor Rating input(W)100W
Motor Rating output(W)75 W
Speed displayanalog
Speed range(rpm)1-240 rpm
Stirring bar length max(mm)digital 1s. up to 99h 59m 59s
Speed controlanalog
Dimensions (W x D x H)880 x 350 x 130 mm
Weight(kg)11.5 kg
Permissible ambient temperature5 - 50 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 42
Voltage220 - 230 V
Frequency50/60 Hz
Power input150W

Kontakt des Herstellers:

Labinco B.V.
Zinkstraat 64
4823 AC Breda
The Netherlands
