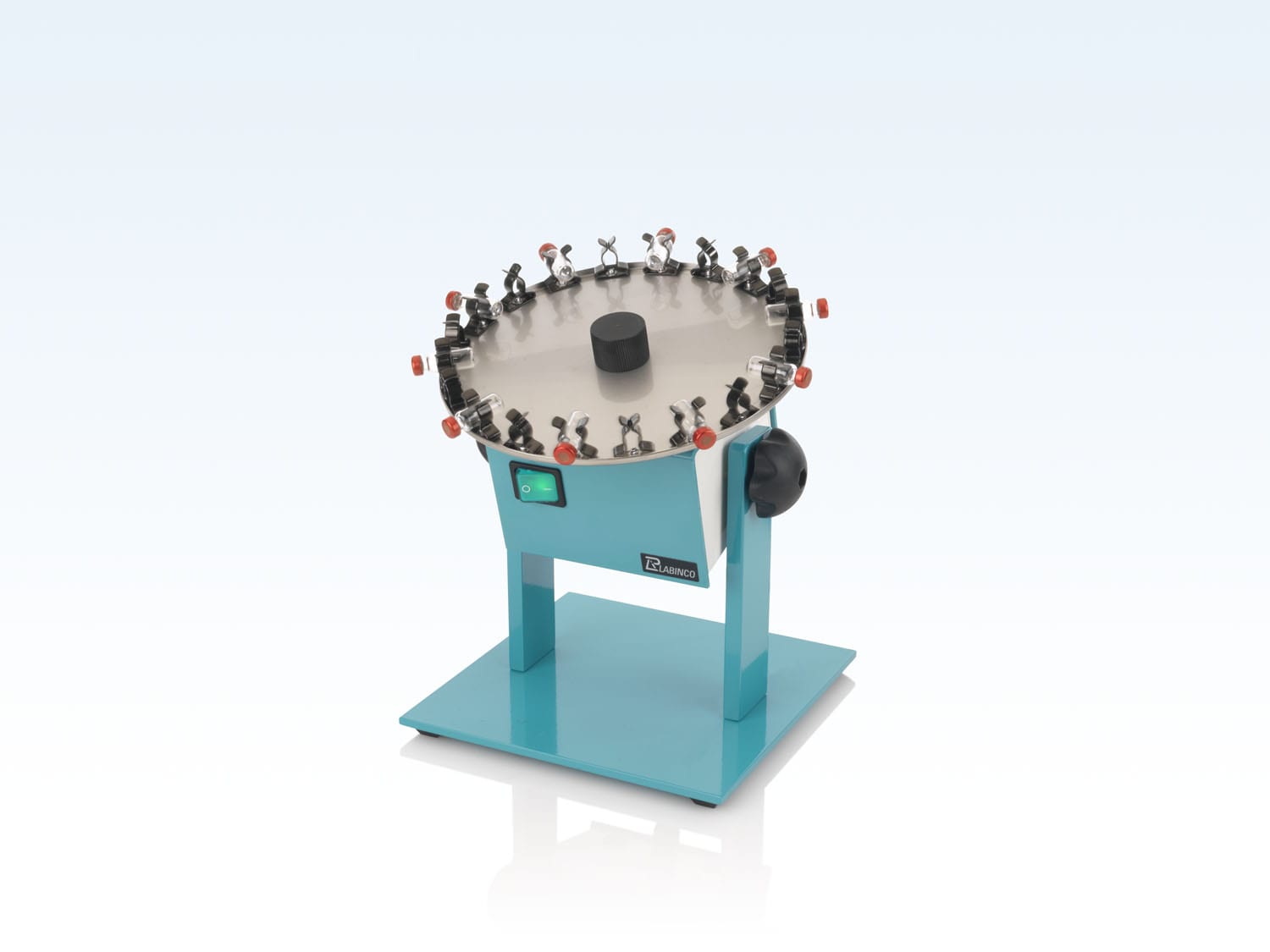

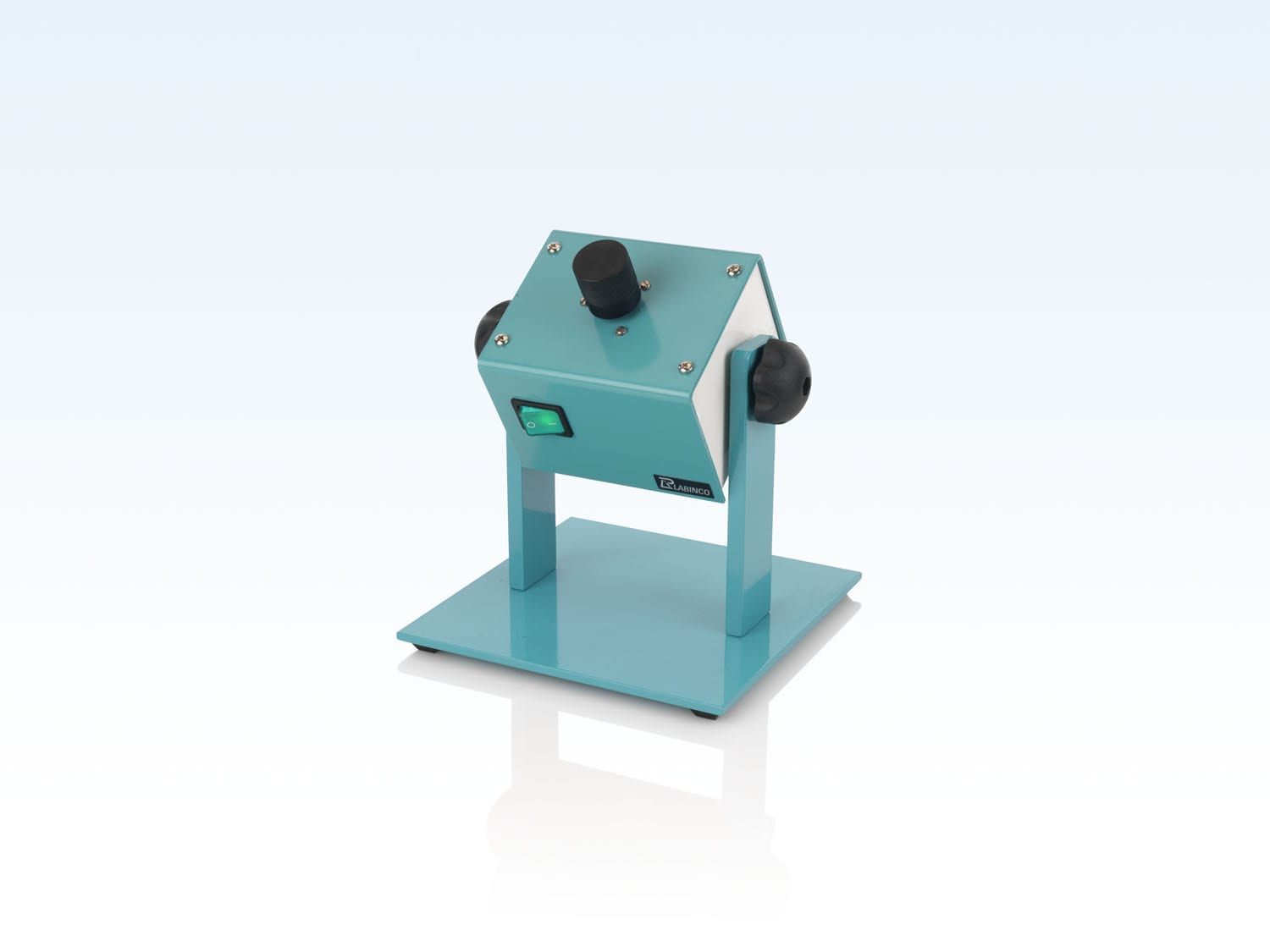

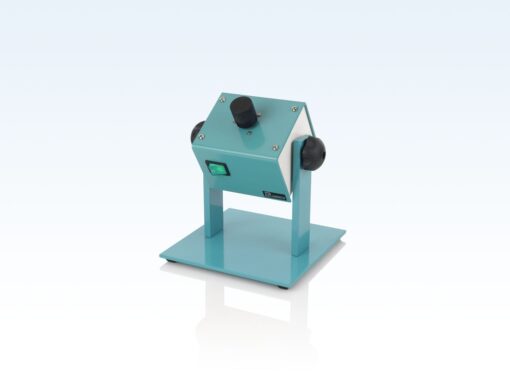

LABINCO L28 Test-Tube Rotator

  • Test-Tube Rotator for serial rotation of test-tubes 4-40 mm
  • Speed 10 rpm not adjustable
  • Angle of rotation can be set between 90° and 27°
  • Dimensions (WxDxH) 200x 200 x 220 mm
  • Weight 2.6 kg
  • Art.nr.28000 (230V) 28010 (115V)
  • See also the other models for more options on www.labinco-bv.com
Labinco Test Tube Rotator L28
Labinco Test Tube Rotator L28
Dutch Laboratory Equipment
Labinco Test Tube Rotator L28
Labinco Test Tube Rotator L28
Dutch Laboratory Equipment

Model – L28

  • For mixing, di usion, dialysing, extraction etc.
  • SPEED 10 rpm With strong, geared motor
  • Angle of rotation can be set between 90° and 27°
  • Tubes may be exchanged while rotator is running
  • Comes with line-cord, but without disks
Number of positions1 for max 2 disks
Max Quantity1kg
Motor Rating input(W)30W
Motor Rating output(W)25W
Speed range(rpm)10rpm
Speed controlnot adjustable
Dimensions (W x D x H)200 x 200 x 220 mm
Weight(kg)2.6 kg
Permissible ambient temperature5 - 60 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 42
Voltage220 - 230 V (115 / 100 V)
Frequency50/60 Hz
Power input35 W
