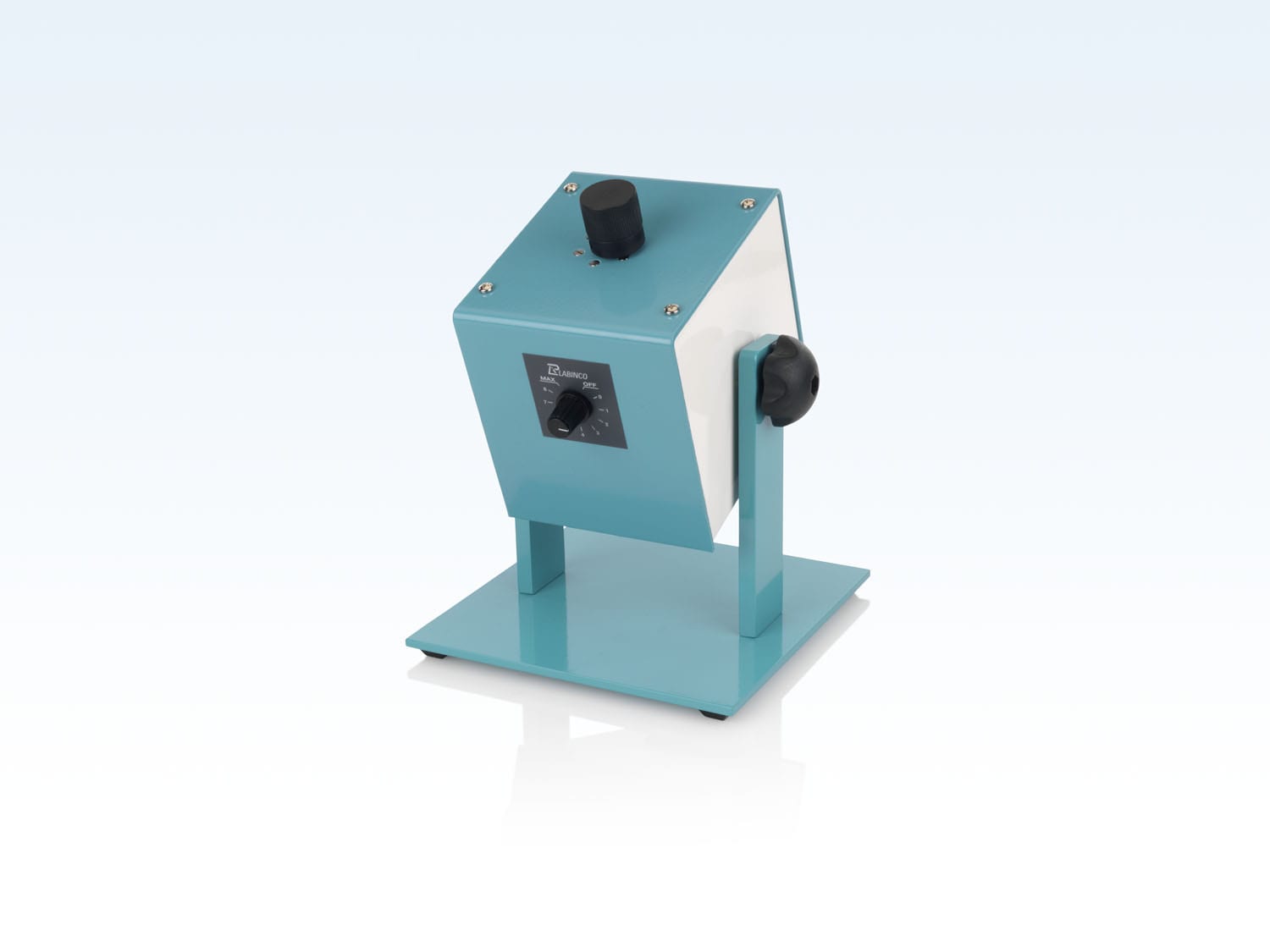

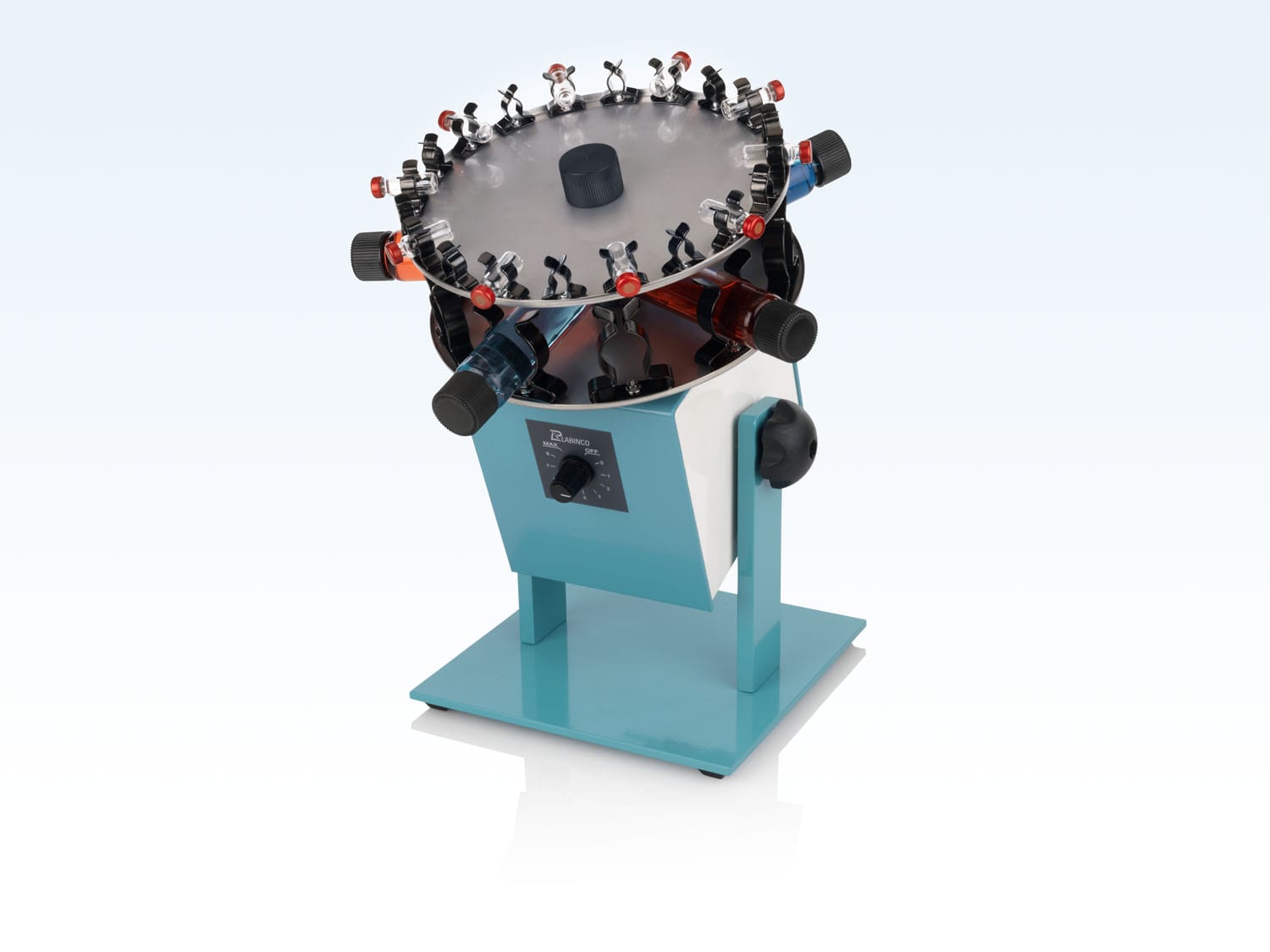

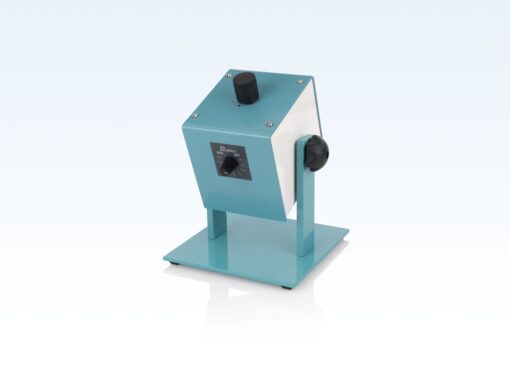

LABINCO L29 Large Test-Tube Rotator Variable speed

  • Large Test-Tube Rotator for serial rotation of test-tubes 4-40 mm
  • Speed 1-50 rpm analog
  • Angle of rotation can be set between 90° and 27°
  • Dimensions (WxDxH) 200x 200 x 270 mm
  • Weight 3.6 kg
  • Art.nr.29000 (100 – 230V)
Labinco Test-Tube Rotator L-28
Labinco Test-Tube Rotator L-28
Dutch Laboratory Equipment
Labinco Test-Tube Rotator L-28
Labinco Test-Tube Rotator L-28
Dutch Laboratory Equipment

Model – L29

  • For mixing, di usion, dialysing, extraction etc.
  • variable speed 5 to 50 rpm
  • Angle of rotation can be set between 90° and 27°
  • Tubes may be exchanged while rotator is running
  • Comes with line-cord, but without disks
Number of positions1 for max 3 disks
Max Quantity2 kg
Motor Rating input(W)40W
Motor Rating output(W)35 W
Speed displayanalog
Speed range(rpm)1-50 rpm
Speed controlanalog
Dimensions (W x D x H)200 x 200 x 270 mm
Weight(kg)3.6 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 42
Voltage100 - 230 V)
Frequency50/60 Hz
Power input60W
