Deutsch- Topplate 6 x Ø 120 mm diam. Aluminium 50-1250 rpm
- Hotplate temperature 25-350°C (digital)
- 6 positions in one row
- Stirring capacity 6 x 5 Ltr
- Dimensions (WxDxH) 835 x 245 x 140 mm
- Weight 14 kg
- Temperature sensor on request
- Art.nr.81600 (230V)
- Incl. 6 x spinbar

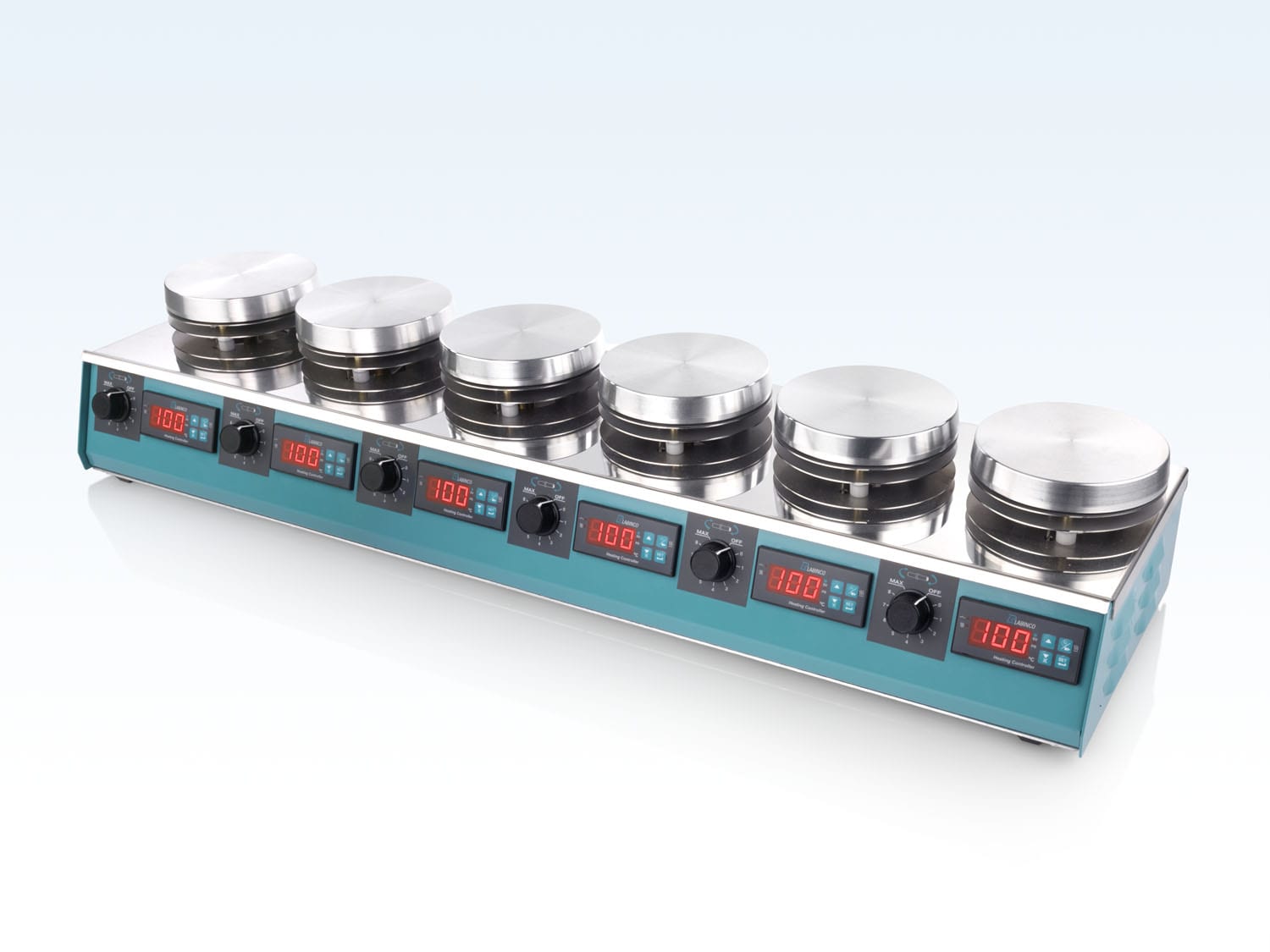

LABINCO LD816 6 position Hotplate Magnetic Stirrer 6×5 ltr. 350°C
- Topplate 6 x Ø 120 mm diam. Aluminium 50-1250 rpm
- Hotplate temperature 25-350°C (digital)
- 6 positions in one row
- Stirring capacity 6 x 5 Ltr
- Dimensions (WxDxH) 835 x 245 x 140 mm
- Weight 14 kg
- Temperature sensor on request
- Art.nr.81600 (230V)
- Incl. 6 x spinbar
| Number of positions | 6 in one row |
|---|---|
| Max Quantity | 6 x 5 ltr |
| Motor Rating input(W) | 6 x 35W |
| Motor Rating output(W) | 6 x 15 W |
| Speed display | analog |
| Speed range(rpm) | 50 - 1250rpm |
| Stirring bar length max(mm) | 60 mm |
| Heat output | 6 x 300 W |
| Heating rate | 7 K/min |
| Heating temperature range | room temp.- 350°C |
| Heat control | digital |
| Heat control accuracy | 1 ±K |
| Speed control | stepless |
| Connection for ext. temperature sensor | on request |
| Control accuracy with sensor | 1 ±K |
| Temperatureconstancyinmedium | 1 ±K |
| Dimensions (W x D x H) | 835 x 245 x 140 mm |
| Weight(kg) | 14 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| Voltage | 220 - 230 V |
| Frequency | 50/60 Hz |
| Power input | 2050 W |
