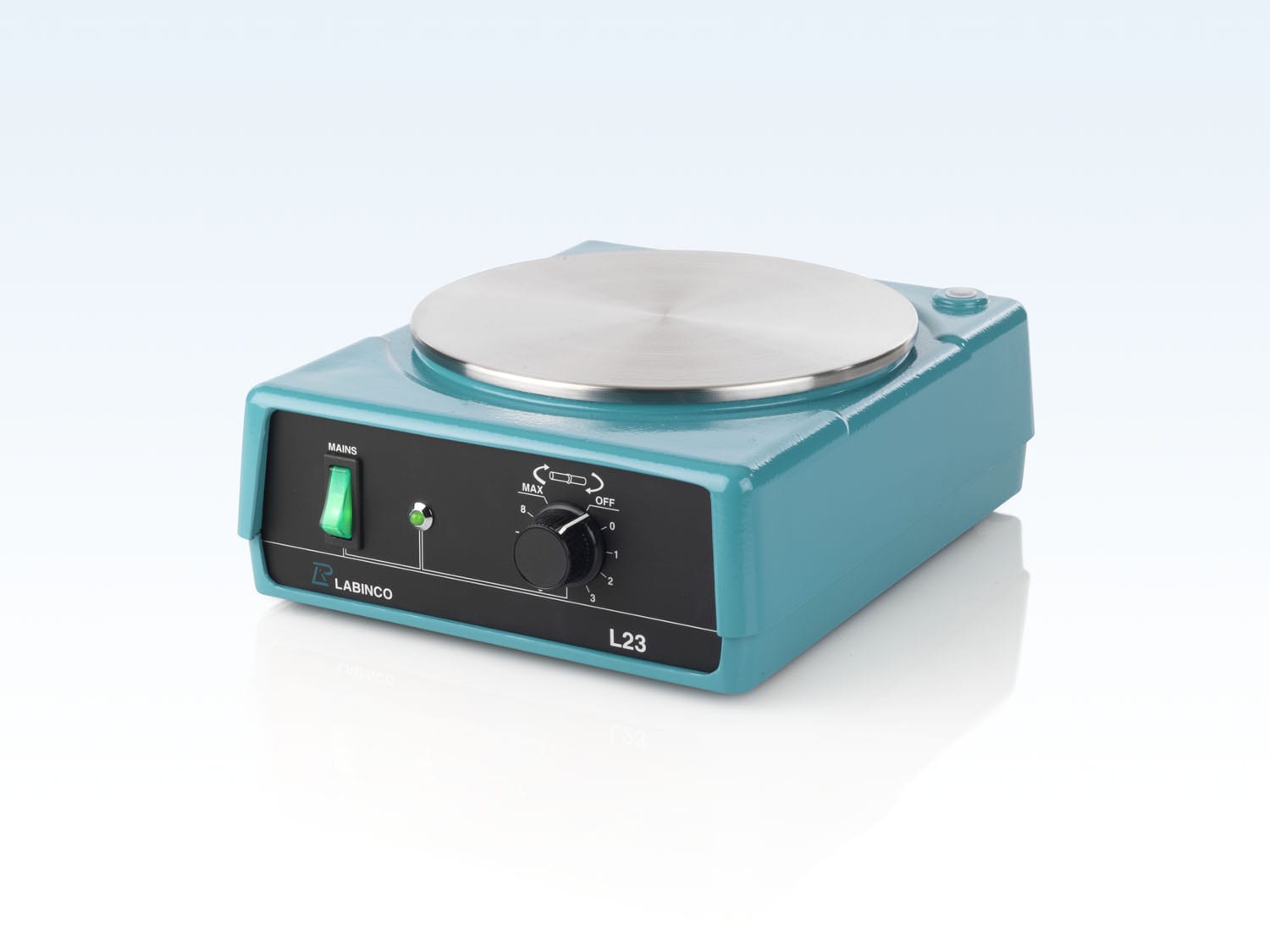

LABINCO L23 Magnetic Stirrer 20 ltr.

  • Topplate 175 mm diam. Stainless steel
  • Stirring capacity 20 Ltr
  • Dimensions (WxDxH) 200 x 250 x 90 mm
  • Weight 2.9 kg
  • Art.nr.23000 (230V) 23010 (115V)
  • Incl. spinbar
Magnetic Stirrer L23
Magnetic Stirrer L23
Magnetic Stirrer L23
Magnetic Stirrer L23

Model L23 Magnetic-Stirrer

  • Electronic speed control
  • Speed; 50 – 1250 rpm
  • Housing: 2 piece casted aluminum
  • Dripwater-spillage proved design and construction
  • Electrostaticaly applied powder coated
  • M-10 threaded support rod connection
  • Supplied with te on magnetic stirring bar line cord and manual
  • 10 liter capacity stainless steel topplate: 180 mm ø
Number of positions1
Max Quantity20 ltr
Motor Rating input(W)35 W
Motor Rating output(W)15 W
Speed display analog
Speed range(rpm)50-2500rpm
Stirring bar length max(mm)80 mm
Speed controlstepless
Dimensions (W x D x H)200 x 250 x 90 mm
Weight(kg)2.9 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 42
Voltage220 - 230 V (115 / 100 V)
Frequency50/60 Hz
Power input35 W

Kontakt des Herstellers:

Labinco B.V.
Zinkstraat 64
4823 AC Breda
The Netherlands
